Access

Settings › Access groups these pages of the admin: Authentication, Providers, Tokens.

Authentication

Settings › Access › Authentication

Authentication sets how people get an account and sign in: registration, sessions, passwords, the links TotalBase emails, and the notices it sends.

Accounts & sessions

Sign-in protection

Email links

Where the links in invitation, reset and verification emails point. By default, TotalBase's own pages; point them at your own application if it handles these steps itself.

A link must be an absolute http(s) URL containing {{token}}, and may use only {{public_url}} and {{token}}. Your page then calls the matching authentication route with the token.

Notices

The emails themselves are edited in Templates › System.

Access review

Providers

Settings › Access › Providers

Besides passwords, your applications can sign users in with Google, GitHub or any OpenID Connect provider: Microsoft Entra ID, Okta, Keycloak, Auth0 and others. Providers are set up in Settings › Access › Providers.

Provider sign-in works two ways: people sign in to your application, which receives a Data API session (the account needs a role with API access), or to the portal itself (the admin or the App), from its sign-in page (the account needs admin or app access, as with a password).

Setting one up

Create the client secret first, in Settings › Security › Secrets: providers reference it by key and never store it themselves. Then New provider opens a wizard:

1. Provider: Google, GitHub, Microsoft / Azure AD, GitLab, Apple, Slack, Okta, Auth0, or Custom OIDC provider.
2. Configuration: a name, and what the provider needs: Microsoft's Tenant ID (common or a tenant's id), Okta's or Auth0's domain, a custom provider's Issuer URL. TotalBase discovers the rest from {issuer}/.well-known/openid-configuration.
3. Credentials & access: the Client ID, the Client secret (a key from Secrets), the Allowed redirect URLs (at least one, unless the provider is shown on the sign-in page; see below), an optional Default role for accounts the provider creates, Enabled, and Show on the sign-in page.

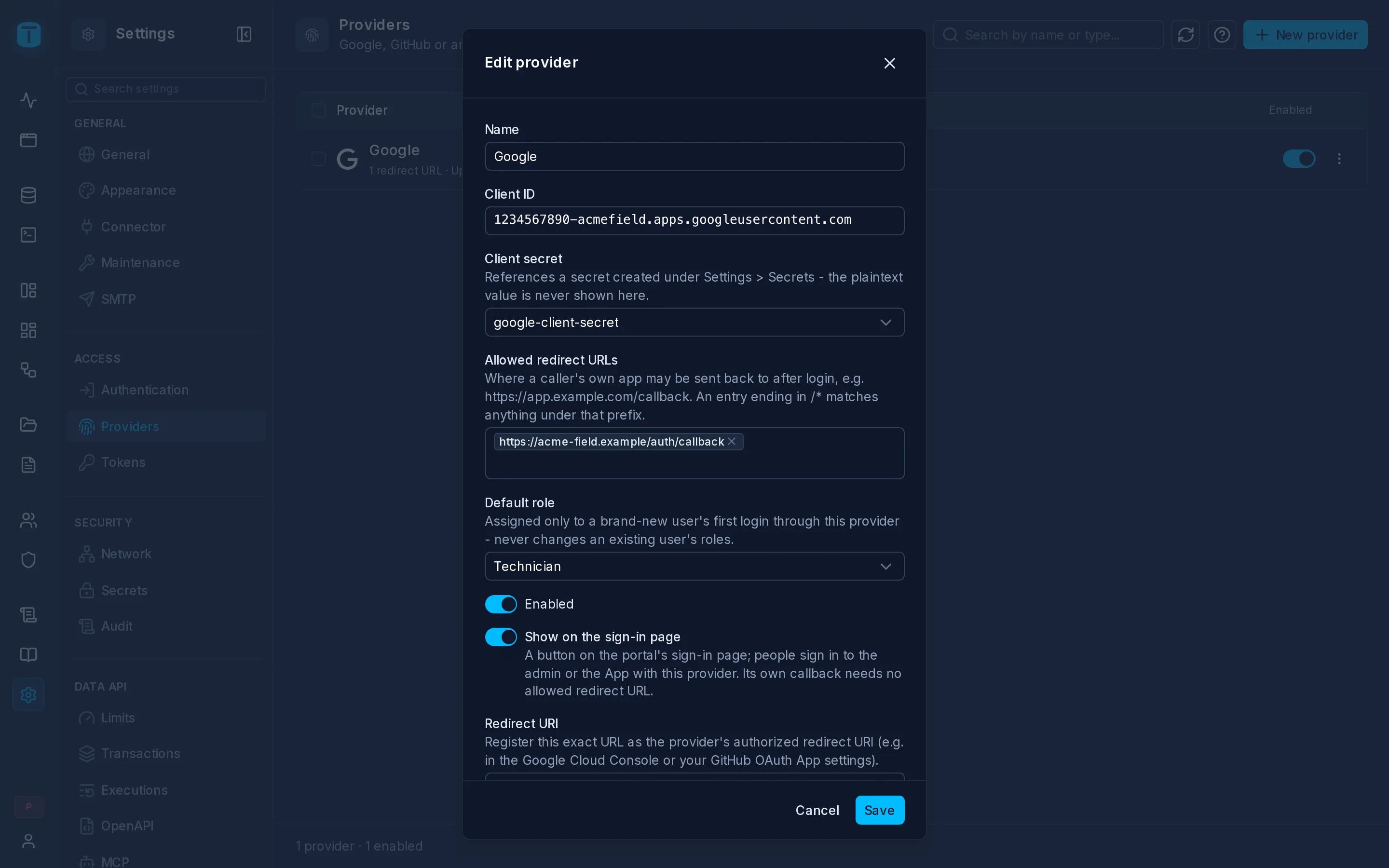

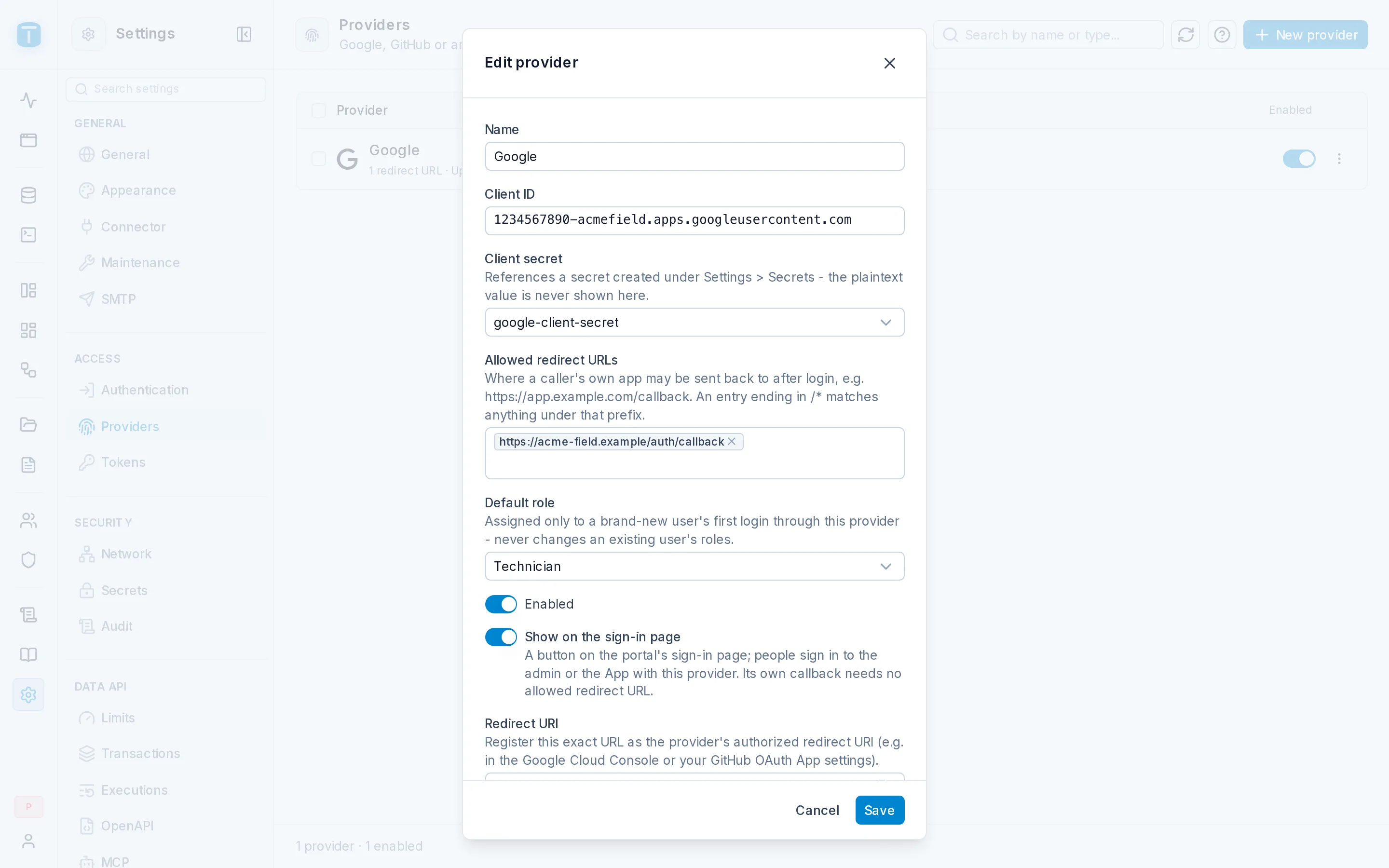

Register an application with the provider using the provider's Redirect URI, shown in its Edit window with a copy button and built from the instance's public URL:

https://ops.acme-field.example/api/auth/oauth/google/callback

The list shows each provider with its type, issuer, number of redirect URLs and an Enabled switch; its ⋮ edits, enables or disables, or deletes it. Deleting a provider keeps the users' accounts and removes only their link to it. A provider's type can't be changed after it's created.

There can be one Google and one GitHub provider enabled at a time, and any number of OIDC providers. Each OIDC provider is addressed by a slug made from its name: "Acme SSO" becomes acme-sso.

On the portal's sign-in page

With Show on the sign-in page on, the portal's sign-in page has a Continue with {name} button for the provider, under the email and password. With more than three such providers, a single Sign in with… button lists them. Signing in this way follows the same rules as a password: the account needs a role with admin or app access, and then lands where its access opens. The portal's own return page needs no entry in the allowed redirect URLs.

The sign-in flow

An application starts the flow by sending the browser to:

GET /api/auth/oauth/{provider}?redirect_to=https://app.acme-field.example/after-login

TotalBase sends the user to the provider (with PKCE and, for Google and OIDC, a nonce), checks the answer, signs the user in, and returns the browser to redirect_to with the result in the URL fragment:

https://app.acme-field.example/after-login#token=<session token>
https://app.acme-field.example/after-login#error=access_denied

Redirect allowlist

redirect_to must match one of the provider's allowed redirect URLs: exactly, or under a prefix ending in /*. A provider with no allowed URLs can't complete a sign-in. This is deliberate, so a session token is never handed to an address you didn't approve.

How accounts are linked

When someone signs in through a provider, TotalBase finds their account in this order:

1. Already linked: the provider's user id was linked before, so that account signs in.
2. Same verified email: the provider says the email is verified and an account has it, so the provider is linked to that account.
3. New account: a new account without a password is created, with the provider's default role if one is set.

An existing account's roles are never changed by signing in. An account that couldn't sign in with a password (inactive, locked or a system account) can't sign in through a provider either. A provider that doesn't share an email can't create an account.

A first sign-in also fills in the user's avatar from the provider, if they don't have one.

Restricting who gets in

Signing in creates an account, but access comes from roles. A new account without a role is created, but its sign-in ends with #error=access_denied, because it has no API access. It can sign in once someone assigns a role. For a company directory (an OIDC provider only your staff can use), set a default role that has API access. For a public provider such as Google, leave it empty and assign roles by hand, or invite people first: their invitation creates the account, and signing in with Google then links to it by email.

Errors returned to the redirect

Tokens

Settings › Access › Tokens

Tokens sets the defaults for personal API tokens. The tokens themselves are listed in Users › API tokens and each user's My account › Tokens.
